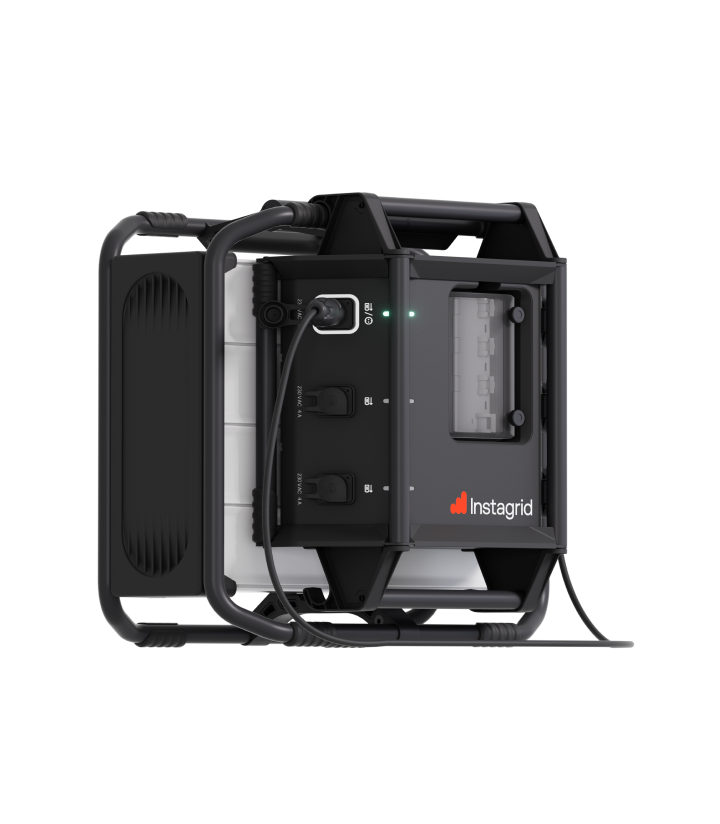

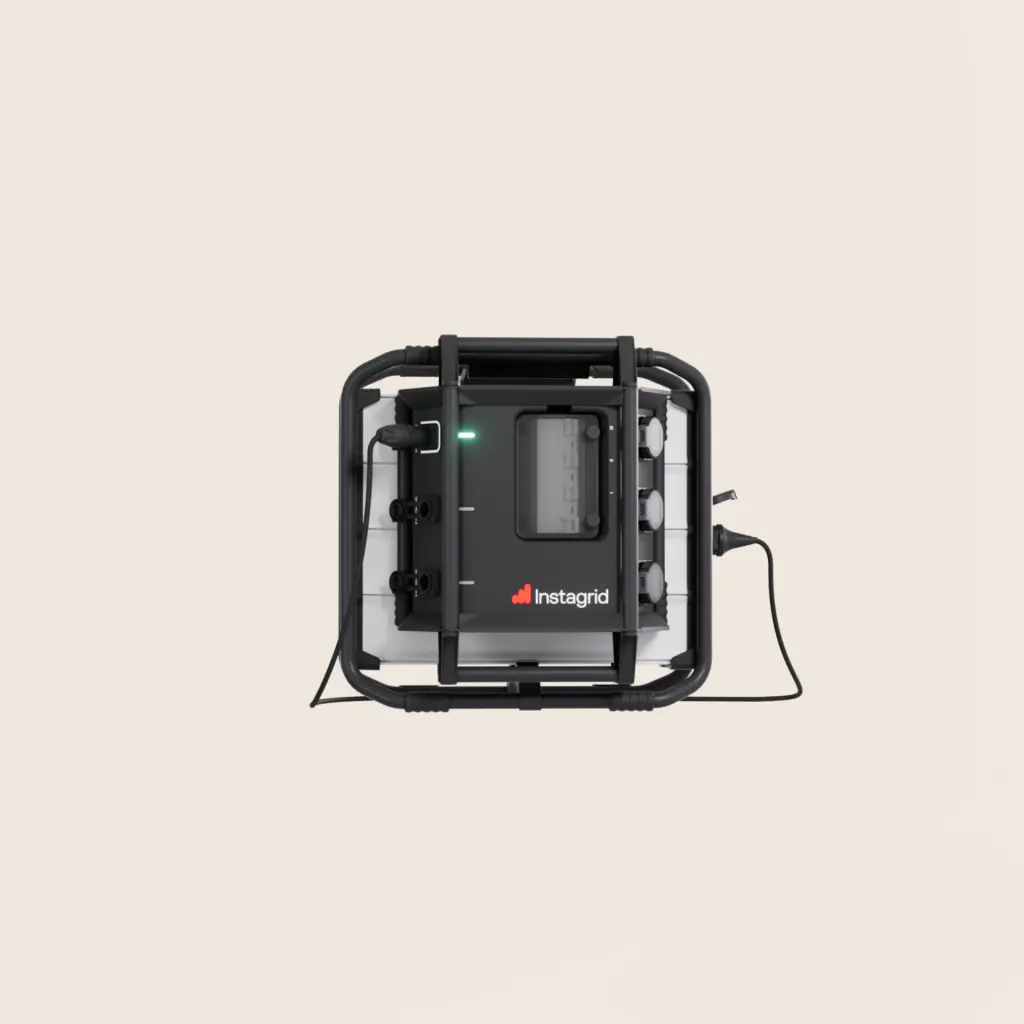

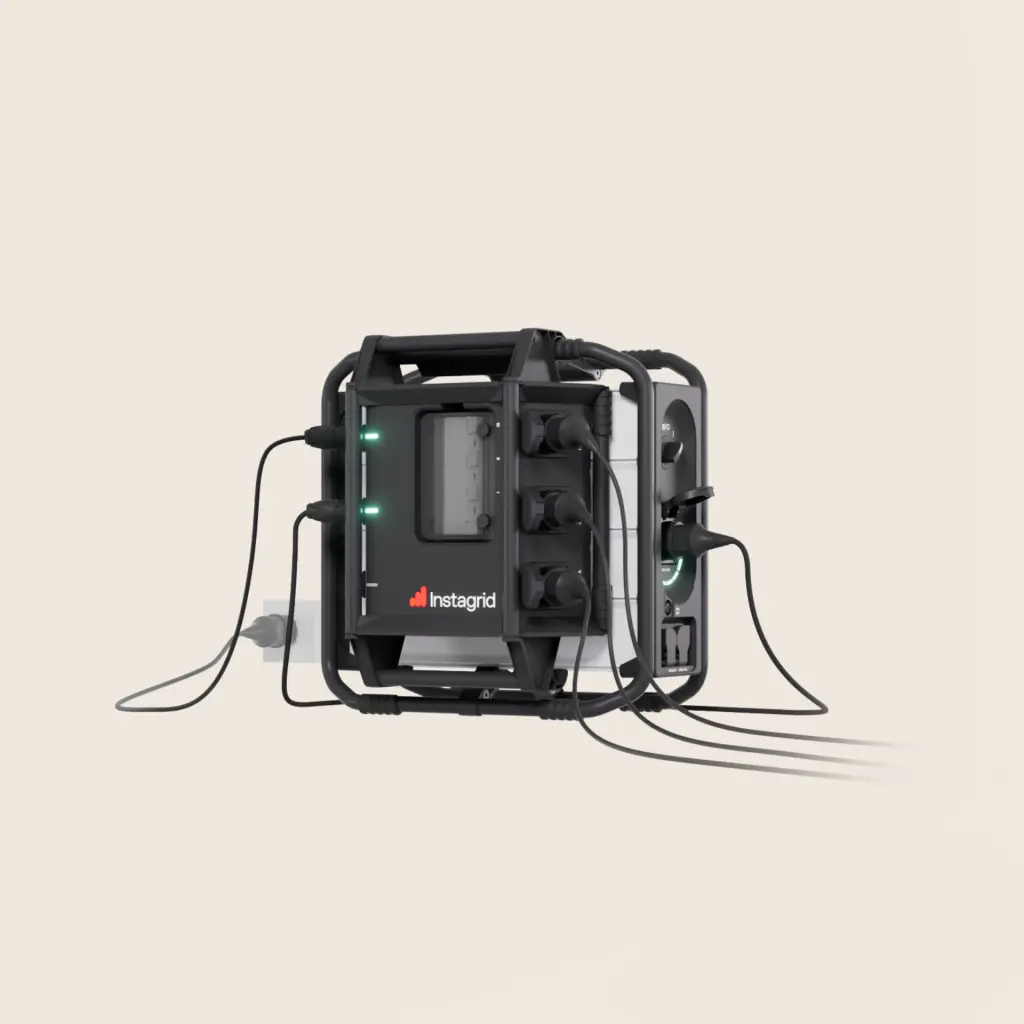

InstaGrid Link

• Increase capacity x 3 – Boost your capacity up to 6.3kWh
• Island Mode – Hotswap ONE units in and out without interruption
• Mission critical power supply – Set up a UPS by connecting ONE to the mains
• Run more devices – Use several high-powered tools at the same time

• Power your most demanding tools
• 18 kW peak power
• Work anywhere
• Take a 230V wall socket with you – power any device no matter where you are.
• Fast charging
• Full charge in 3 hours. Charge Instagrid ONE in the middle of your workday.
• Robust and weather-proof
• IP54 rating. Work in any conditions, unaffected by dust or water.

• General Information
• Weight: 4.5 kg
• Size: 400 x 310 x 140 mm
• IP Class: IP54
• Protection class: Class I provided with Class II construction
• Ambient temperature: -15 °C to 40 °C
• Receptacles
• Input receptacles: 3 x Neutrik powerCON TRUE1 TOP®
• Output receptacles (EU, Art.Nr.: 990-00001): 3 x CEE 7/3 16A
• Output receptacles (CH, Art.Nr.: 990-00003): 3 x T23s 16 A
• Operation
• Nominal voltage output: 230 V AC / 50 Hz
• Nominal output current: 16 A
• Nominal output power: 3600 W
• Switching time: < 20 ms
• Protection
• Residual circuit device: 3 x 1P+N RCD type A, 30 mA
• Circuit breaker: 1P 16 A (tripping characteristic C)
