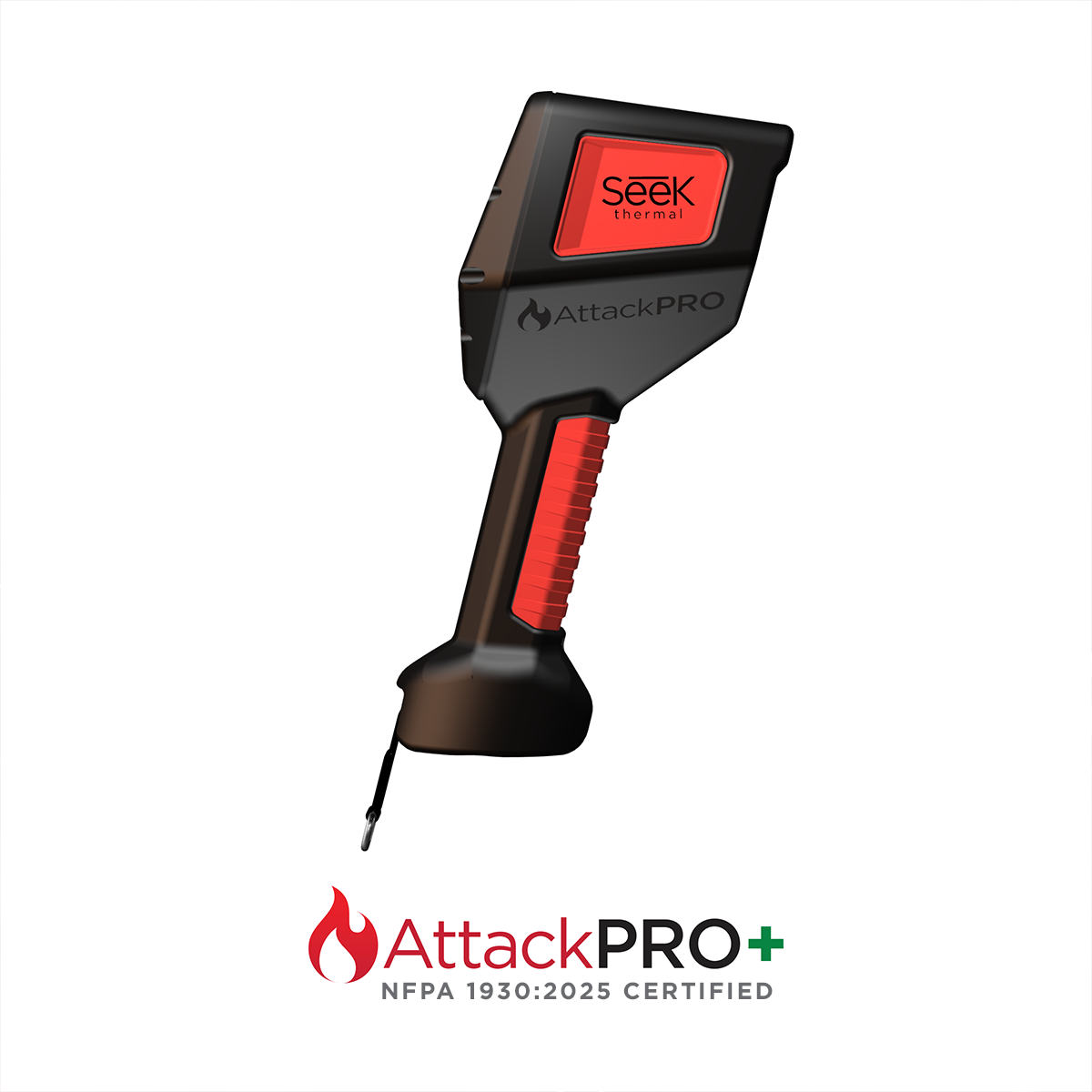

SEEK Thermal - AttackPro+ (NFPA)

SKU: FQ-PANX

Designed with firefighters for firefighters, the NFPA Certified AttackPRO+ thermal imaging camera offers an unmatched combination of image quality, durability, and price. With its high resolution and wide field of view, AttackPRO+ is the new decision-making weapon of choice for captains and commanding officers. Mixed-gain pixel technology eliminates the visual confusion and delay of switching between high-gain and low-gain modes. AttackPRO+ lets you clearly see the fire and the crew, all in one detailed image. The kit includes the AttackPRO+ camera, 2 batteries, and a charging dock.

Features

Key Features:

  • Mixed Gain with SV1 Image Optimization: See the hottest and coolest regions of the scene simultaneously without freezing or switching gain modes; details enhanced with SV1
  • Durable, Waterproof Design: Durable and reliable design built with IP67 rating and 2 meter drop resistance
  • Wide, 57-Degree Field of View: Easily scan a large area to identify hazards or victims in seconds
  • Long-Lasting Rechargeable Battery: Greater than 6 hours of continuous thermal imaging
  • Simple Operation. Purpose-Built for the Fire Ground: One button thermal operation, no confusing menus or settings, get the job done efficiently and consistently

Benefits:

  • Decision Making on Command: Direct firefighters, water, and resources with expedited tactical precision
  • Robust Personal TIC: Equip the entire department with the first affordable decision-making TIC
  • See Through Smoke. Flashlight Optional: 300 lumen LED flashlight available at the touch of a button
  • Search and Rescue: Find victims and self-rescue faster with a reliable personal TIC
  • Execute 360 Size-ups & Overhaul Faster: When seconds count, a Seek decision-making TIC saves time and lives

Technical Specs

Seek Thermal AttackPRO+ (NFPA Certified) Specifications — a high-resolution, decision-making thermal imaging camera for firefighting, featuring Mixed Gain with SV1 image optimization and a 300-lumen LED flashlight.

  • Thermal Sensor: 320 x 240 (76,800 pixels)
  • Detection Distance: 12 inches to 1,000 feet
  • Focal Plane Array: Uncooled Vanadium Oxide Microbolometer, 7.8–14 μm, 12 μm Pixel Pitch
  • Field of View: 57˚ HFOV, 42˚ VFOV
  • Object Temperature Range: -4 to 1,022˚F (-20 to 550˚C)
  • Operating Temperature:
    • -4 to 131˚F (-20 to 55˚C) — no time limit
    • Up to 302˚F (150˚C) — max 15 minutes
    • Up to 500˚F (260˚C) — max 5 minutes
  • Frame Rate: > 25 Hz Fast Frame
  • IP Rating: IP67 Waterproof
  • Flashlight: 300 Lumen LED
  • Display: 3.5” Color with Corning® Gorilla® Glass
  • Thermal Sensitivity: < 35 mK with SV1
  • User Interface: On device 2 tactile button operation
  • Temp. Display Scale: Fahrenheit or Celsius
  • Image Modes: FIRE (TI Basic & TI Basic+) and SURVEY
  • Storage Media: N/A
  • Battery: >6 Hours Thermal Imaging (w/o flashlight); >3hrs (with thermal AND flashlight)

Extended Information

NFPA 1801:2021 CERTIFIED

Related PDFs

Spec Sheet
View & Download PDF
