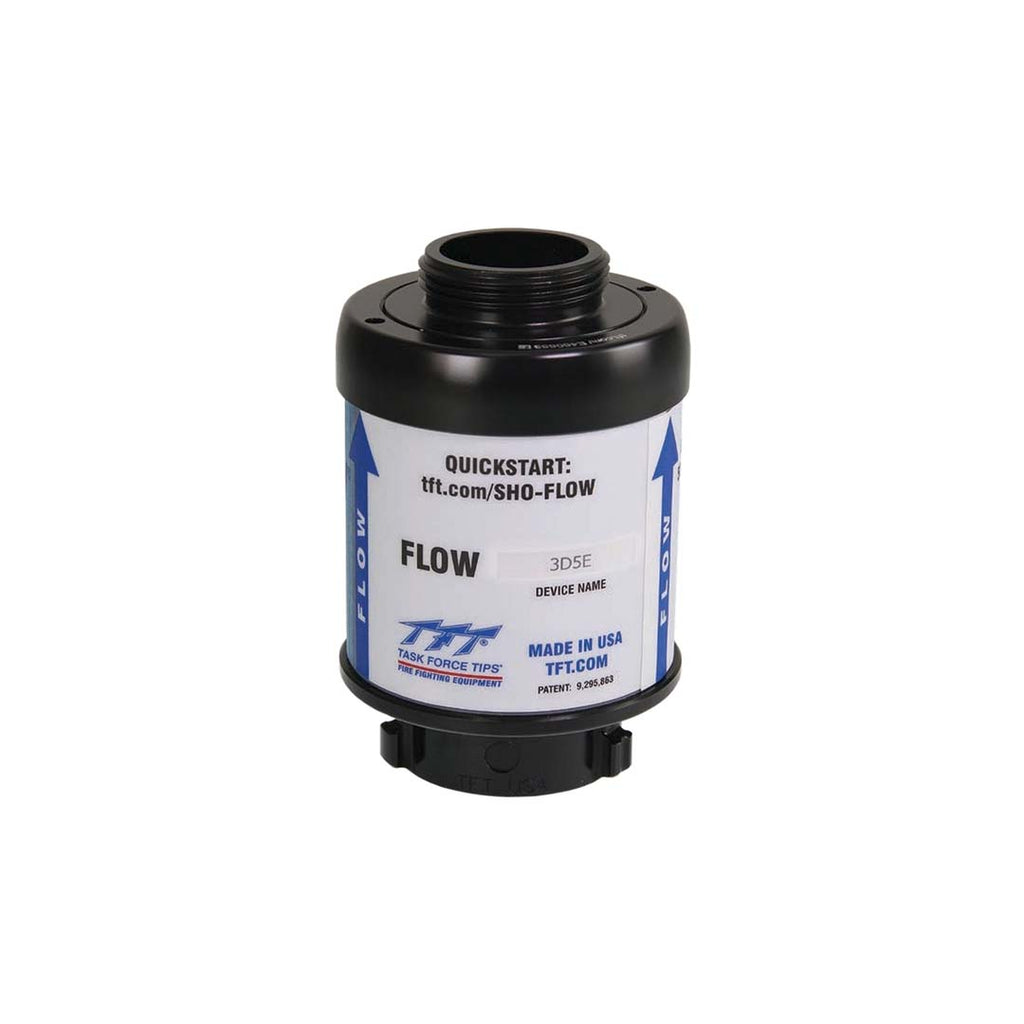

TFT SHO-FLOW® 1 Bluetooth Flow Meter

SKU: EFF-IFIF300

The SHO-FLOW® 1 Bluetooth® is a water flow meter that is designed for installation in between any two lengths of hose with 1.5” (38 mm) couplings. Any firefighting, training, or testing operation that utilizes hose lines or nozzles is an application for a SHO-FLOW® 1 Bluetooth Flow Meter.

Description

The SHO-FLOW® 1 Bluetooth® has no wires to connect and no batteries are needed. The flow meter has an unobstructed water driven turbine that passes debris up to 1” (38 mm) in diameter. Staring at a flow rate of 50 gpm (200 l/min), the water driven turbine self generates power to create a Bluetooth connection to any smart device that displays the flow rate in real time. The flow rate is user specified in GPM, l/min, or l/sec. The SHO-FLOW® 1 Bluetooth® App is available to download for free through Apple or Android app stores. The app allows user specified flow rates, calibration, and diagnostics.

Features

  • Full Flow Range - 50-300 GPM (200-1150 LPM)
  • 1.5” NPSH F x 1.5” NPSH M
  • Use with any nozzle type
  • No Wires - No Batteries - Needed
  • Show your Flow with Bluetooth Technology
  • Easy to Use and Deploy
  • Rugged and Convenient

Technical Specs

  • Inlet - 1.5" (38 mm)
  • Inlet Coupling Style - Rocker
  • Inlet Coupling Swivel - Rigid
  • Inlet Connection Type - NPSH Female
  • Outlet - 1.5" (38 mm)
  • Outlet Coupling Style - Male Threads
  • Outlet Coupling Swivel - Rigid
  • Outlet Connection Type - NPSH Male
  • Flow Range - 50 - 300 gpm
  • Maximum Operating Pressure - 300 psi (21 bar)
  • Waterway Size - 1.5" (38 mm)
  • Accuracy - +-2.5% Full Scale
