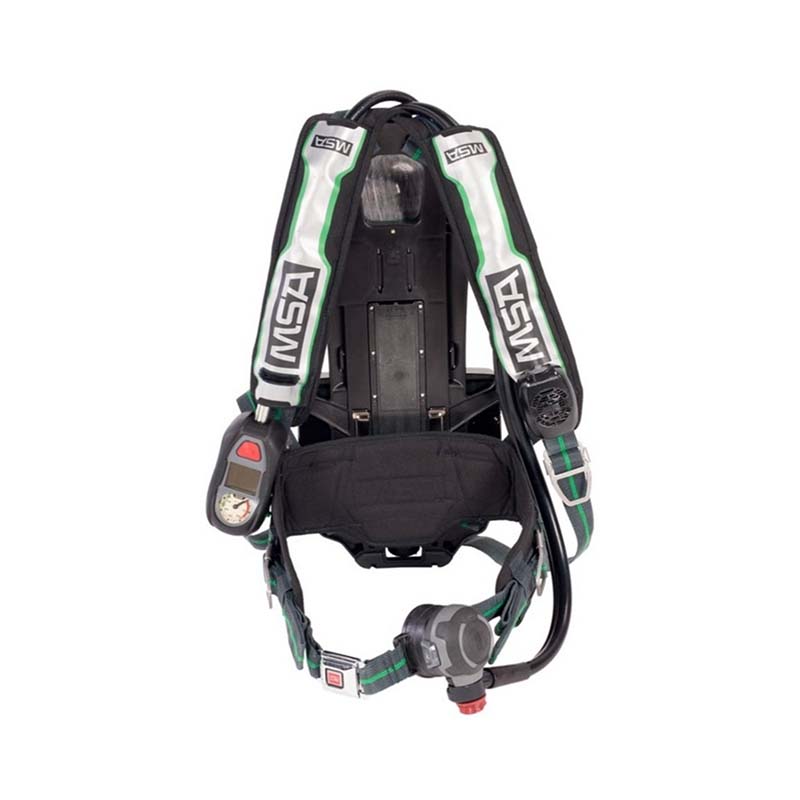

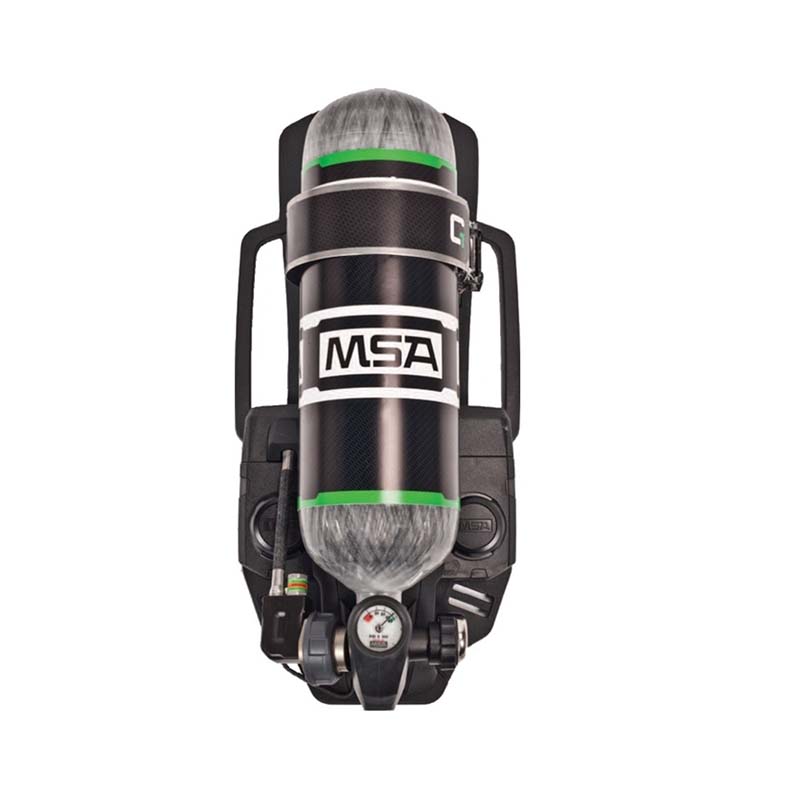

MSA G1 SCBA XR Edition

The MSA® G1™ SCBA XR Edition represents the next step in a decade of continuous innovation. Driven by evolving customer needs and a commitment to firefighter safety, this latest evolution of the G1™ SCBA delivers enhanced performance through updates to the breathing air regulator and improved soft goods—making the best even better!

• Facepiece is lightweight and compact: no electronics needed
  • Open port design with cross contamination protection
  • Comfortable and easy to use, with low breathing resistance on and off air

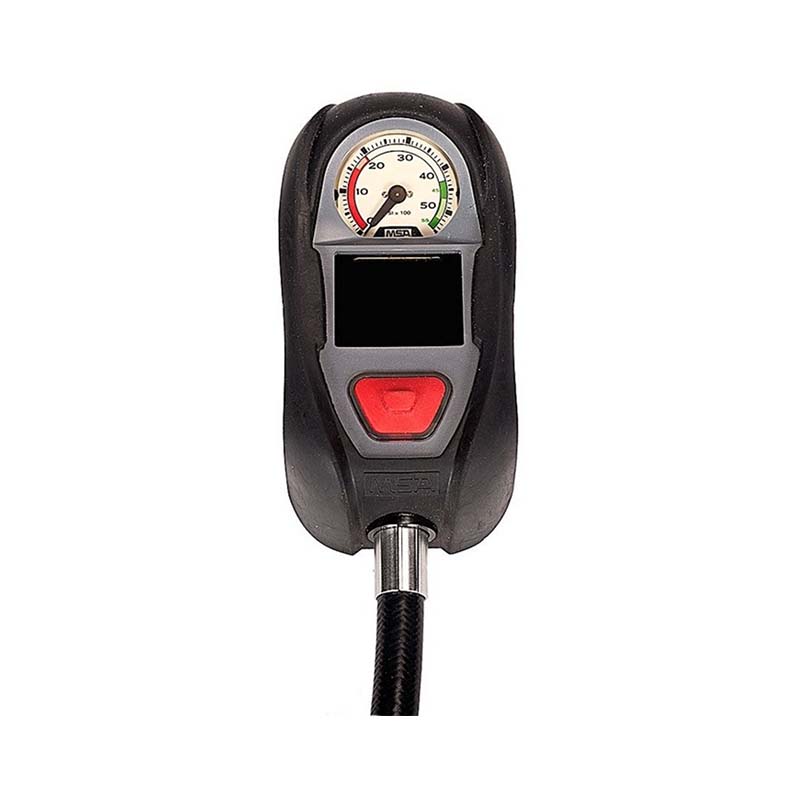

• Control module provides dual color LCD and analog displays
  • Display automatically turns on when control module is lifted into viewing position
  • Large print makes display easy to read
  • Provides more data and functionality than ever before
  • No matter which button is pressed, necessary information displays

• Improved visibility through buddy lights and reflective material
  • 4 buddy lights
  • 2 control module lights
  • Regulator light

• Heads up display (HUD) shows remaining cylinder pressure in 4 increments via colored LED's
  • Clear and easy to understand and interpret provided information

• Electronic communications are integrated into every unit
  • Loud, clear communication
  • Removes inhalation breathing noise

• G1 SCBA ergonomics
  • Swiveling, adjustable lumbar pad manages SCBA weight
  • Improved comfort, balance, fit

• Central power system for all electronics
  • Only one power source
  • Uses either alkaline or rechargeable battery
  • No need for multiple battery sizes
  • Low cost of ownership

• Available in easily-upgradeable threaded or quick-connect cylinder attachment
  • Quick attachment and replacement for return to the fireground

• Integrated technology for future expansion
  • Bluetooth, RFID, Near Field Communication (NFC), long-range radio

• Customizable - Built to meet your specific needs
  • Control module and HUD display required information; easily adapt to your existing standard operating procedure
  • Wires/hoses can be routed as necessary

Building on 10 years of continuous innovation, the MSA G1™ SCBA XR Edition is the latest evolution of the G1™ SCBA, featuring enhancements to the breathing air regulator and various soft goods:

• The universal emergency breathing safety system (UEBSS) and quick-fill pouches sit closer to the body.
• The lumbar pad is shorter, improving donning and doffing as well as overall comfort and fit for more sizes.
• A basic swivel lumbar allows the SCBA to sit closer to the body and reduces the SCBA weight by approximately half a pound.
• Longer straps accommodate a wider range of body sizes.
• The T4 regulator features an enhanced valve that is easier to grasp with a gloved hand.
• The inside color of the G1 Facepiece’s nose cup has been updated to simplify installation.
• All soft goods are removable for easy cleaning.
• All enhancements are backward-compatible with existing G1 SCBA units.
• Certified to NFPA 1981:2018 and NIOSH 42 CFR Part 84.
